Equipments
HPLC
Vercentra HB-20
Modern and fully automated analyzer for measuring HbA1c by HPLC, promotes greater agility and safety for laboratory routines.
Acquiring this equipmentcaracterísticas
Rated Speed
30 tests/hour (< 120 S/Test)
Reagents
• Reagent set available for 800, 1600 or 2400 tests
• Automated detection of on-board reagent inventory
• Automated detection of on-board reagent inventory

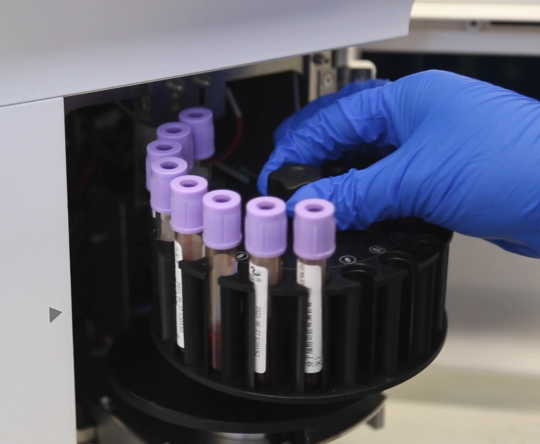

Samples
• Barcode reader (optional)
• Whole blood
• 18 positions
• Aspiration volume: 4 µL
• Automated dilution of whole blood samples
• Whole blood
• 18 positions
• Aspiration volume: 4 µL
• Automated dilution of whole blood samples
Methodology
HPLC (High Performance Liquid Chromatography)
Measurement Range (NGSP)
3.0 - 20%
Data Storage
100.000 results with charts
Interface System
• RS-232
• RJ45
• RJ45
Work Environment
• 10°C - 30°C
• Humidity: ≤ 70%
• Altitude: Self-adaptative
• Humidity: ≤ 70%
• Altitude: Self-adaptative
Quality Control
• 2 levels of control (Qualitrol Vercentra HbA1c)
• Possibility of setting intervals and average
• Levey-Jennings chart
• Possibility of setting intervals and average
• Levey-Jennings chart
Performance Indicators
• Precision: ± 5,0%
• Repeatability: CV ≤ 2,0%
• Repeatability: CV ≤ 2,0%
Results Output
• Internal thermal printer
• External printer (optional)
• LIS
• USB
• External printer (optional)
• LIS
• USB
Dimensions (H x W x L)
52,1 x 32,5 x 45,7 cm
Weight
22 kg
