Biochemistry and Turbidimetry

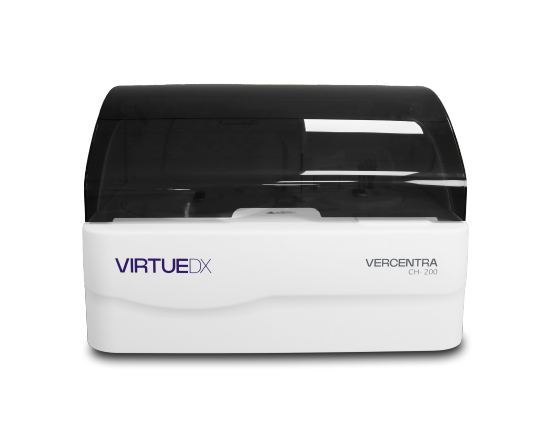

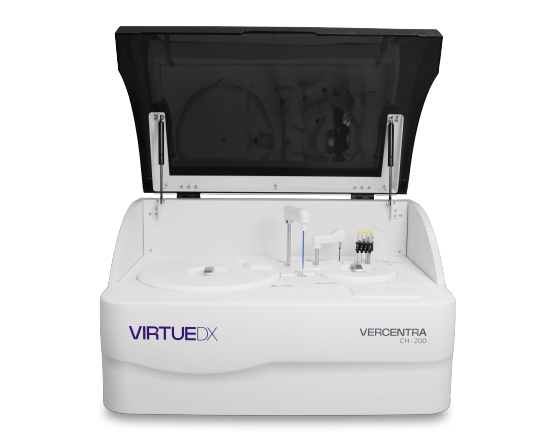

Vercentra CH-200
Compact benchtop biochemical and turbidimetric analyser with a capacity for 200 photometric tests per hour. It offers high efficiency, great on-board reagent autonomy and low input consumption, ideal for laboratories looking for performance and space savings.
Acquiring this equipmentcaracterísticas
Nominal speed
200 photometric tests/hour
Reagents
• Optional barcode reader
• Up to 80 positions
• Refrigerated tray
• Aspiration volume: 20 to 300 μL (interval of 1 μL)
• Container: 32 mL and 16 mL
• Up to 80 positions
• Refrigerated tray
• Aspiration volume: 20 to 300 μL (interval of 1 μL)
• Container: 32 mL and 16 mL
Samples
• Optional barcode reader
• Up to 40 positions
• Aspiration volume: 2 to 30 μL (interval of 0.1 µL)
• Up to 40 positions
• Aspiration volume: 2 to 30 μL (interval of 0.1 µL)
Reaction
• 44 reaction cuvettes
• Reaction volume: 150 to 330 μL
• Fixed Cycle: 18 seconds
• Total reaction time: 10 minutes
• Reaction volume: 150 to 330 μL
• Fixed Cycle: 18 seconds
• Total reaction time: 10 minutes
Methodologies
• Endpoint and kinetic
• Biochemistry and Turbidimetry Tests
• Linear and non-linear calibration
• Biochemistry and Turbidimetry Tests
• Linear and non-linear calibration
Photometric system
• Photometry with diffraction grating with 8 different wavelength (opcional com 12 different walvelength)
• Bichromatic reading
• Halogen lamp
• Bichromatic reading
• Halogen lamp
Washing system
• Automatic washing of reaction cuvettes
• Uses only one solution to wash the cuvettes
• Water consumption: 8 L/h
• Uses only one solution to wash the cuvettes
• Water consumption: 8 L/h
Homogenization system
Mixer independent
Pipetting system
• Probe for adding sample and reagent
• Level detector for samples and reagents
• Level detector for samples and reagents
Interface system
Conecting TCP/IP
Software
Windows
Quality Control
Westgard Rules
Dimensions (H x L x W)
53 x 74,5 x 54 cm
Weight
80 kg
